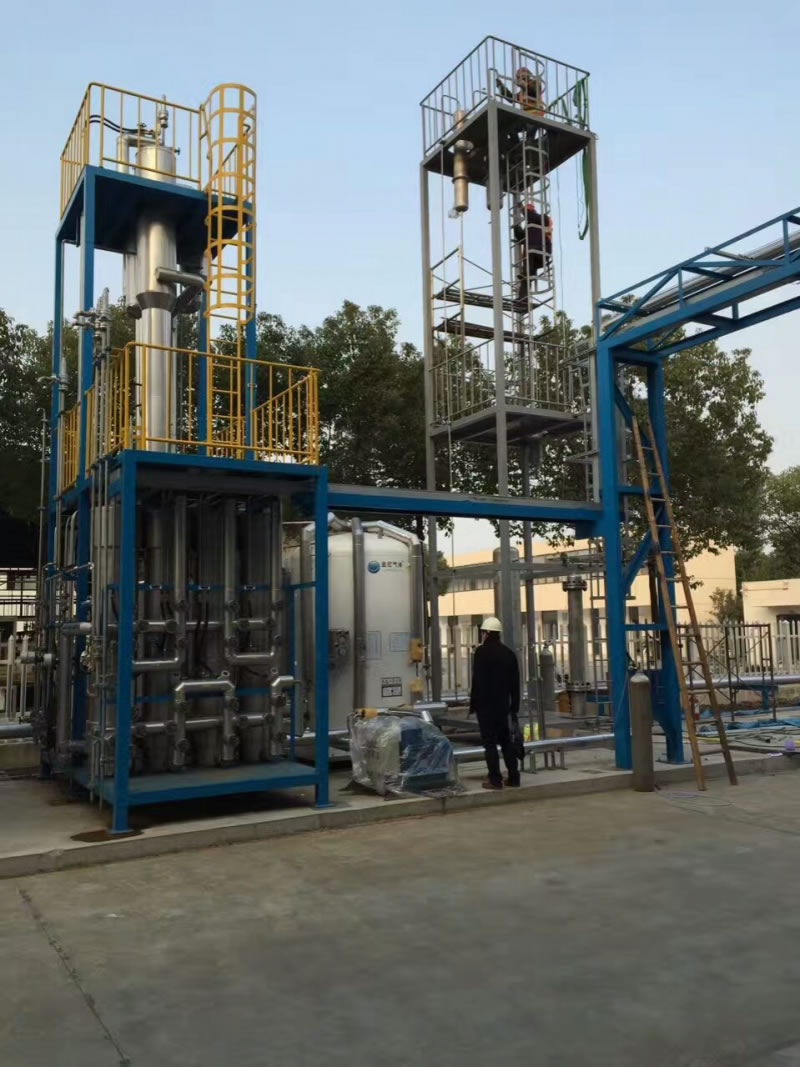

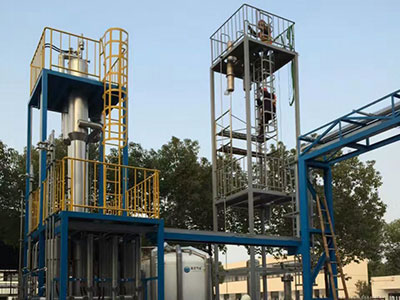

Dynamic Extraction Line For Traditional Chinese Medicine
Application
The dynamic extraction line for traditional Chinese medicine is energy and water saving. It can shorten the time of extraction, concentration and drying. The whole set of line meets the GMP standard requirements so it is suitable to be used in large, medium and small pharmaceutical factory and hospital preparation room.
| Type | STQ-50G | STQ-100G | STQ-200G | STQ-300G |
| Item | ||||
| Extraction method and temperature | Water to be added (L/batch) | |||
| Raw material treating capability (KG/batch) | 50 | 100 | 200 | 300 |
| Water to be added (KG/batch) | 500 | 1000 | 2000 | 3000 |
| Extraction time | 2 h/batch, the time recording is started from that the water temperature of the extraction tank is up to the requirements. | |||
| Solid-liquid separation method | Centrifugal separation | |||
| Residue discharging method | Mechanical scraping | |||
| Concentration method | Continuous three way energy saving vacuum concentration | |||
| Concentration speed (KG/h) | 300 | 500 | 1000 | 1500 |
| Water evaporation capability of spray drying (KG/h) | 30 | 60 | 120 | 180 |
| Moisture content of dry extract (%) | 3 | |||

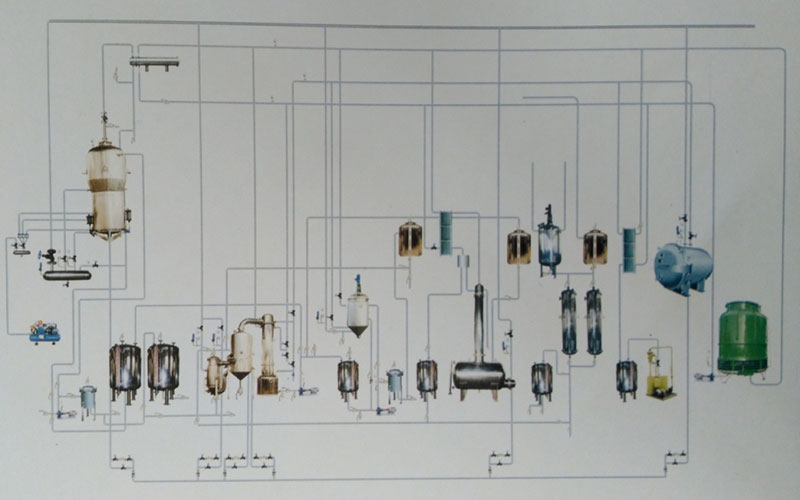

The dynamic extraction line for traditional Chinese medicine consists of the following units:

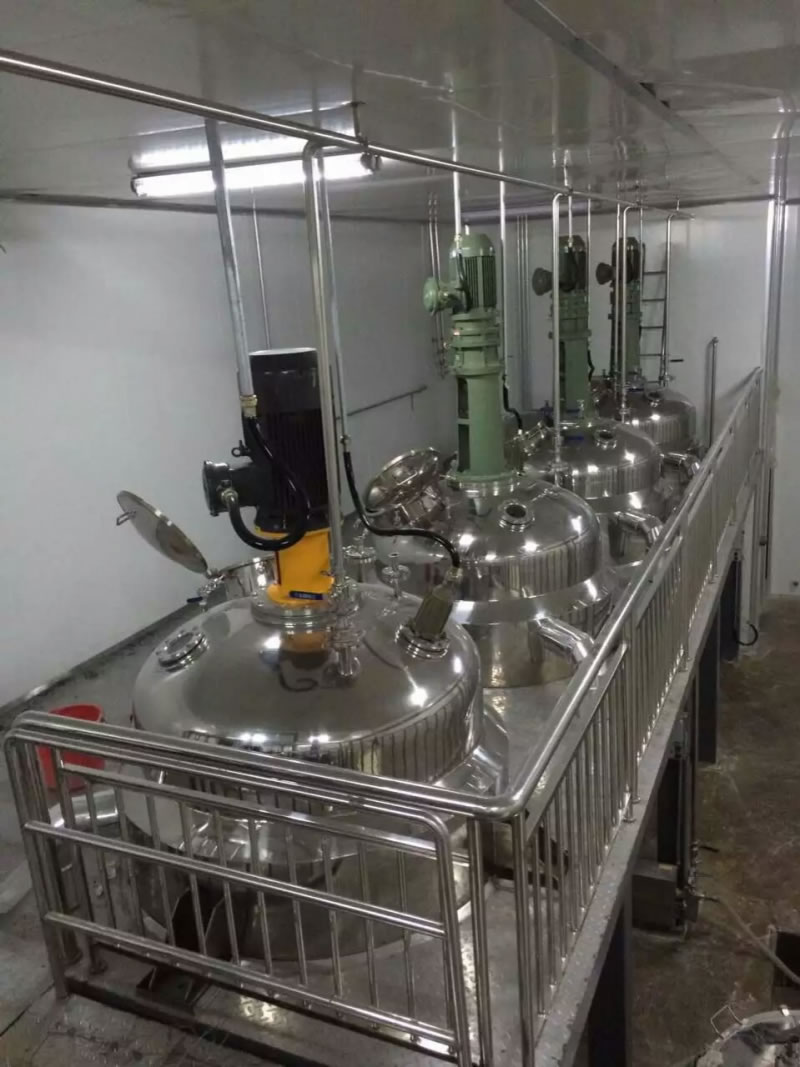

- Extraction unit
- Solid-liquid separation unit
- Three-way energy saving concentrator
- Spray dryer
