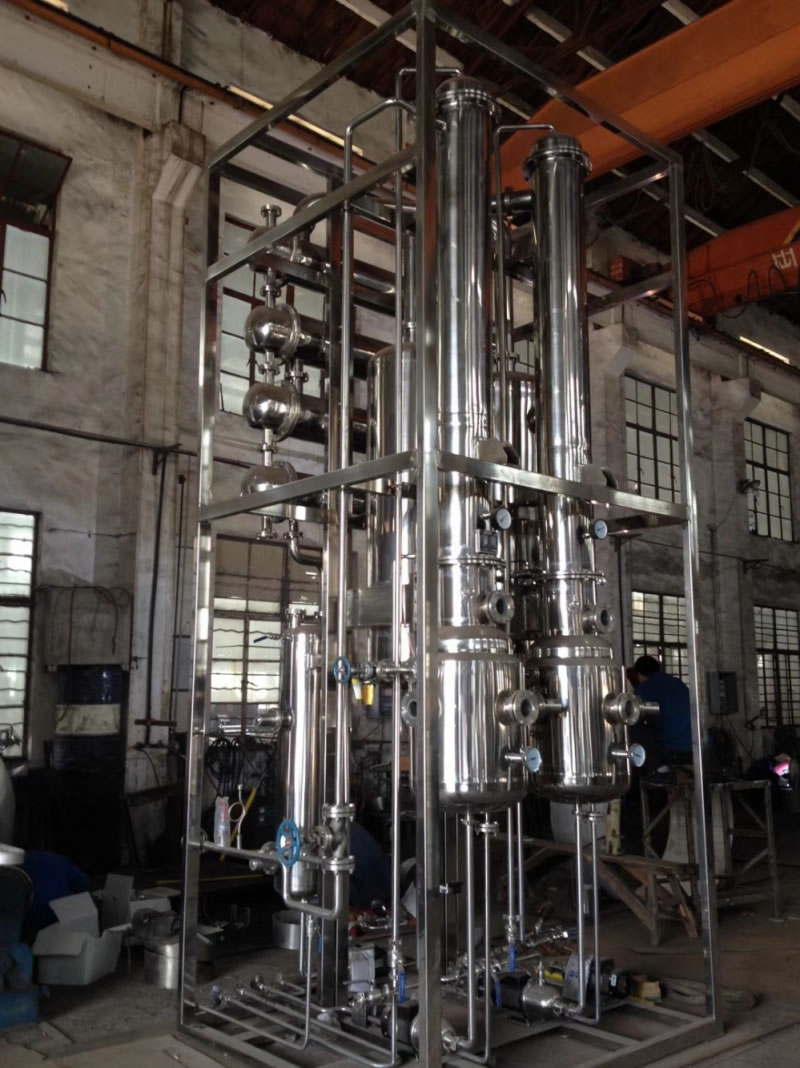

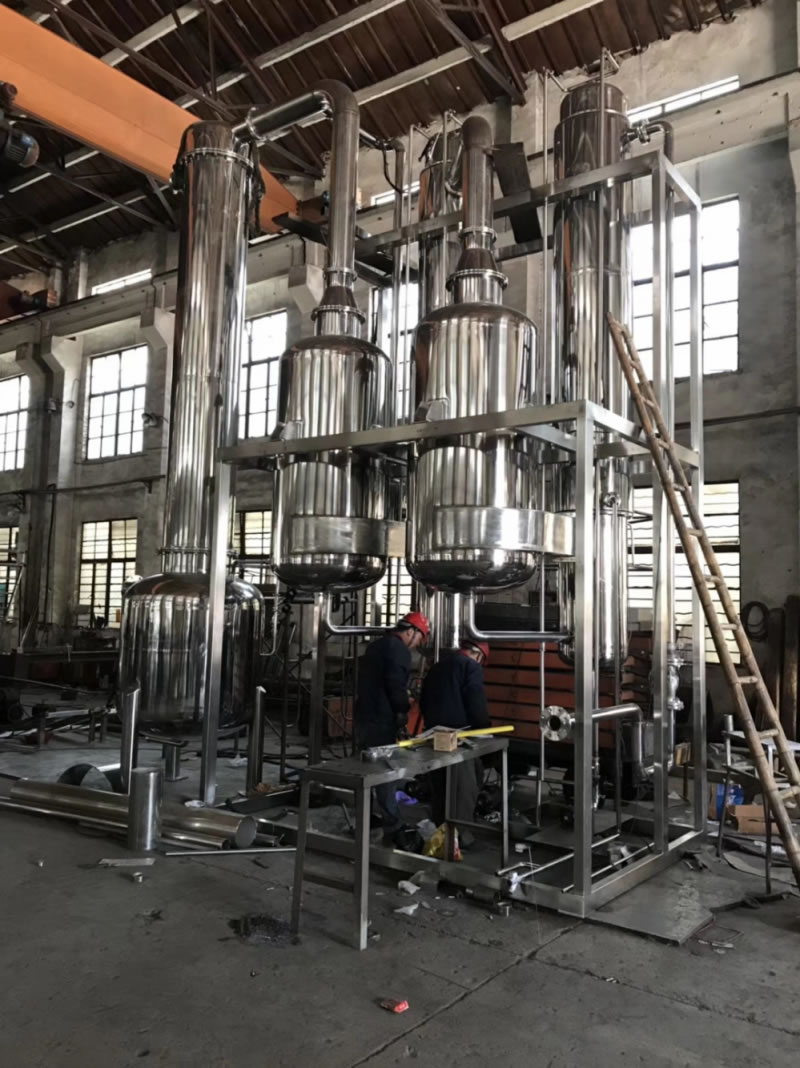

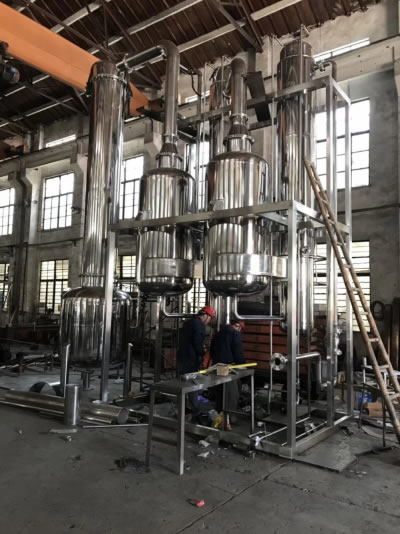

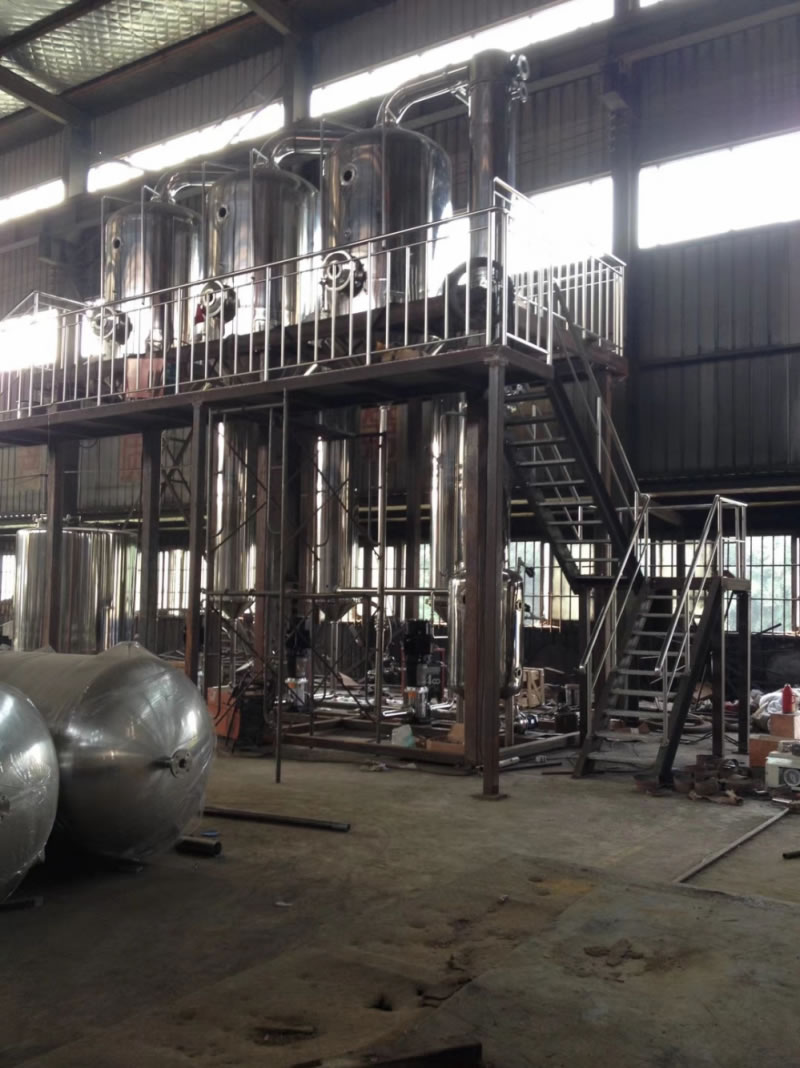

Multifunctional Extraction And Concentration Unit
  • Multifunctional Extraction And Concentration Unit
  • Multifunctional Extraction And Concentration Unit
  • Multifunctional Extraction And Concentration Unit

Description
The multifunctional extraction and concentration unit can be used for Chinese medicine, fruit juice and some other materials extraction, concentration and recovery of organic solvent in colleges and universities, scientific research institutions, hospitals, pharmaceutical factory and food industry. It is suitable for extraction and concentration (water and organic solvent) of Chinese medicine and natural products and recovery of volatile aromatic oil. The concentration ratio can be from 1.1-1.38. The multifunctional extraction and concentration unit is generally make up of extraction tank, condenser, cooling unit, collector, extraction tank filter, tubular heater, evaporator, recovering condenser, recovering cooling unit, collection tank, stainless steel machine rack, connecting pipe valve, instruments etc.

Type Extraction tank External circulation evaporator
Item Volume (L) Interlayer working pressure (MPa) Vessel working pressure(MPa) Working pressure(MPa) Tank vacuum degree (MPa) Rated evaporation quantity (kg/h) Lifting power (KW) Vessel type
DTS-50 65 0.15 Normal pressure 0.25 -0.018 10 0.25 Normal pressure
DTS-100 125 0.15 Normal pressure 0.25 -0.018 40 0.25 A grade
DTS-200 250 0.15 Normal pressure 0.25 -0.018 60 0.25
DTS-300 375 0.15 Normal pressure 0.25 -0.018 80 0.25
DTS-400 475 0.15 Normal pressure 0.25 -0.018 100 0.25
DTS-500 580 0.15 Normal pressure 0.25 -0.018 150 0.37
