Multifunctional Pellet Coater

  • Multifunctional Pellet Coater
  • Multifunctional Pellet Coater

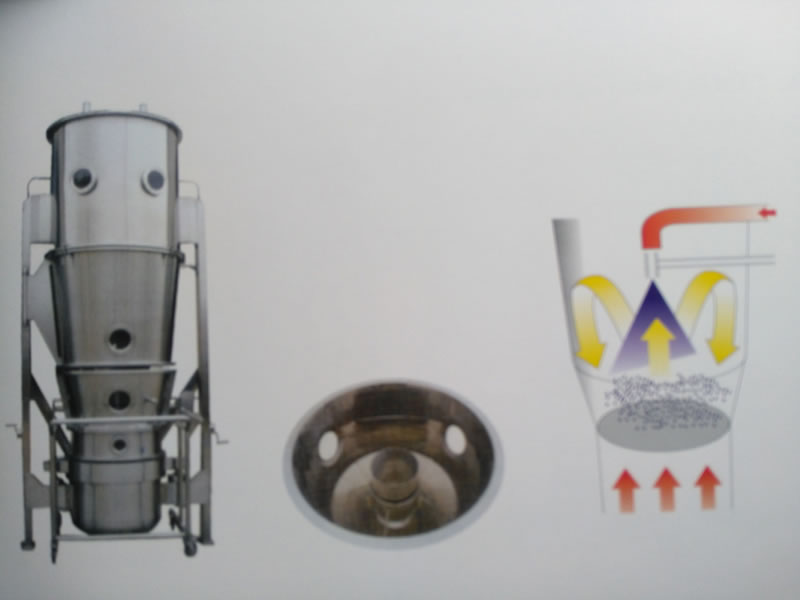

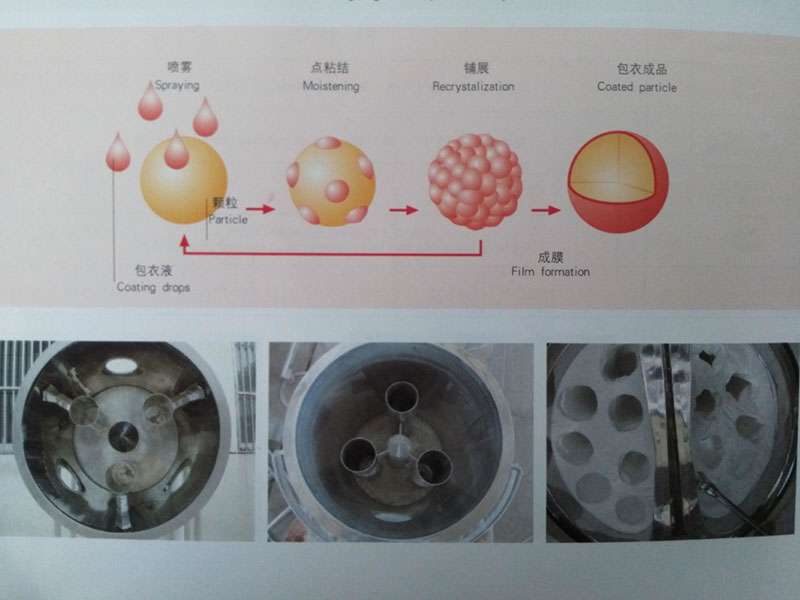

The multifunctional pellet coater is a new type of solid preparation production equipment combining the following techniques together: spray drying and granulating technique, fluid bed and spray fluid bed technique and rotary granulating technique. The top of the coater is responsible for spraying, granulating while the bottom of it is responsible for spray coating. This coater is suitable for granulating, pelleting and coating in industries such as traditional Chinese medicine, western medicine, food and chemical industry etc.

Parameters
Item Unit DLB-3 DLB-5 DLB-10 DLB-15 DLB-20 DLB-30 DLB-40 DLB-60 DLB-80 DLB-120 DLB-150 DLB-200 DLB-300 DLB-500
Top spraying container volume 1 15 22 35 45 70 100 180 210 320 410 560 660 1100 2000
Bottom spraying container volume 10 15 26 35 55 90 115 145 235 320 425 535 900 1600
Tangent spraying container volume
Top spraying capability Kg/batch 1.5~4.5 5 - 15 10-30 15-60 20-80 230-110 40 - 150 60-220 80 - 300 120-380 150-550 200-750 300-1000 500-1500
Bottom spraying capability Kg/batch 1.2-3.6 5 - 12 10-25 15-45 20-65 30-110 40 - 120 60-170 80 - 200 120-280 150-360 200-480 300-850 500-1200
Tangent spraying capability Kg/batch 0.6-2.0 2.4 - 8 4-20 6--48 8-60 12-80 14- 100 20-120 24 - 150 40-200 60-280 100-360
Induced draft fan power Kw 3.0 4.0 4.5 5.5 7.5 7.5 18.5 22.0 28.5 35.5 42.5 48.5 55 75
Auxiliary fan power Kw 0.55 1.5 1.5 2.2
Electrical heater power Kw 7.5 21 22.5 27 31 42.5 51.5 81.0 105 135 145 175 234 315
Steam consumption Kg/h 25 60 85 100 120 180 195 220 280 360 400 480 600 1000
Steam pressure MPa 0.40 C 0.60
Compressed air consumption M³/h 0.25 0.35 0.7 0.6 0.9 0.85 1.1 1.3 1.5 1.8 2.0 2.2 3.0 4.0
Compressed air pressure MPa 0.40 C 0.60
Working temperature ℃ Automatically adjusting according to room temperature-120℃
Material temperature ℃ Automatically adjusting
Equipment noise dB < =70
Whole machine weight KG 1200 1450 1650 1800 2350 2600 2950 3450 3650 4000 4450 5000 6500 8000

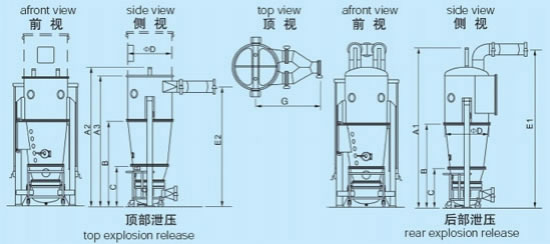

Outline dimension
Multifunctional Pellet Coater
Size A1 A2 A3 B C ΦD E1 E2 G
5 3210 3210 2810 2140 920 500 3260 2610 740
15 4060 4060 3660 2280 970 800 4100 3410 970
30 4400 4400 4000 2520 1130 1200 4600 3750 1420
60 4800 4800 4400 2900 1180 1400 5000 4100 1620
120 5100 5100 4700 3000 1380 1500 5300 4400 1620
300 5760 5760 5490 3465 1840 1800 6500 5090 1990
500 6630 6630 6360 4145 2145 2700 7590 5960 2960

The multifunctional pellet coater produced by JiangSu Xiandao can be used for granulating and coating in traditional Chinese medicine, western medicine and chemical industries. Some product types are listed in this page, if there is one which meets your requirements, you can tell us the No. of it. We can provide you with detailed information of this type. If there is no type of product which can meet your requirements, you can directly tell us your demands so that we can provide you with improved design. JiangSu Xiandao not only provides whole set of drying equipment, granulating equipment and coating equipment, we also provide perfect after-sales services.

Data download DLB Series Multi-functional Granulation Coater
Xiandao has more than 30 years' experience in producing spray drying equipment and fluid bed granulators. Because of various particle processing plant dryers and granulating machinery, we can offer complete spray drying and granulation solutions used in different industries such as pharmaceutical industry, food industry and chemical industry. Our spray drying machines and granulator machines are certified by ISO9000, ISO14001, CE and CU-TR. Due to superior quality and sufficient spare parts inventory, our machines are sold well in the USA, Japan, Australia, Korea, etc.
