Granulator With Fluid Bed

Granulator With Fluid Bed

Introduction
The granulator with fluid bed realizes the combination of machine design and preparation technology. Jiangsu Xiandao provided more than one hundred sets of granulators for customers from China, USA, Japan, Indonesia and Iran. The granulators are all specially designed according to the material features and process requirements.

Picture of experimental sample particlePicture of experimental sample particle

Application
Granulating in pharmaceutical industry
Granulating in food industry
Granulating in other industries
Drying of powder or particle wet materials

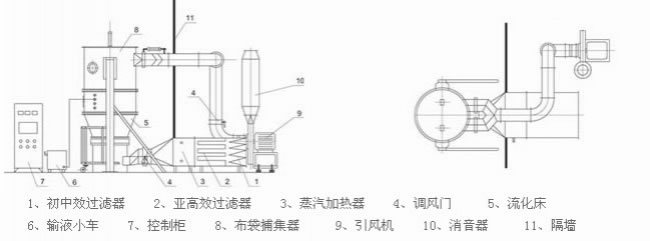

Schematic diagram
The following are the granulator types which have been produced by JiangSu Xiandao. You can also make some improvements on the base of the specific types:
Item Unit Type
3 5 15 30 60 120 200 300 500 1000
Raw material container Volume L 12 22 45 100 220 420 670 1000 1500 3000
Diameter mm 300 400 550 700 1000 1200 1400 1600 1800 2200
Production capacity Min kg 1.5 4 10 15 30 80 100 150 250 800
Max kg 4.5 6 20 45 90 160 300 450 750 1200
Fan Air quantity m3/h 1000 1200 1400 1800 3000 4500 6000 7000 8000 13670
Air pressure mmH2O 375 375 480 480 950 950 950 950 950 1400
Power kw 3 4 5.5 7.5 11 18.5 30 37 45 90
Steam consumption kg/h 15 23 42 70 141 211 282 366 451 750
Compressed air consumption m3/min 0.9 0.9 0.9 0.9 1.0 1.0 1.1 1.5 3.0 4.0
Main machine weight kg 500 700 900 1000 1100 1300 1500 1800 2500 3500
Steam pressure Mpa 0.1-0.4
Temperature ℃ Room temperature around-120℃, adjustable
Working time min Vary from 45-90 according to material features.
Material yield % ≥99
Noise dB(A) The fan and main machine are installed separately so the noise≤75dB(A)
Outline dimension of the main machine M 1.0×0.6  ×2.1 1.2×0.7  ×2.3 1.25×0.9  ×2.5 1.6×1.1  ×2.5 1.85×1.4  ×3 2.2×1.65  ×3.3 2.34×1.7  ×3.8 2.8×2.0  ×4.5 3×2.25  ×5.0 4×2.8×7.2

The granule produced by this granulator with fluid bed is easily dissolved with rapid speed. This granulator has multiple functions of mixing, granulating and drying.

This equipment adopts pressure relief hole which can ensure the safety of the equipment and operators. This is an anti-explosion granulator.
Xiandao has more than 30 years' experience in producing spray drying equipment and fluid bed granulators. Because of various particle processing plant dryers and granulating machinery, we can offer complete spray drying and granulation solutions used in different industries such as pharmaceutical industry, food industry and chemical industry. Our spray drying machines and granulator machines are certified by ISO9000, ISO14001, CE and CU-TR. Due to superior quality and sufficient spare parts inventory, our machines are sold well in the USA, Japan, Australia, Korea, etc.
