Centrifugal Spray Dryer

Performance introduction

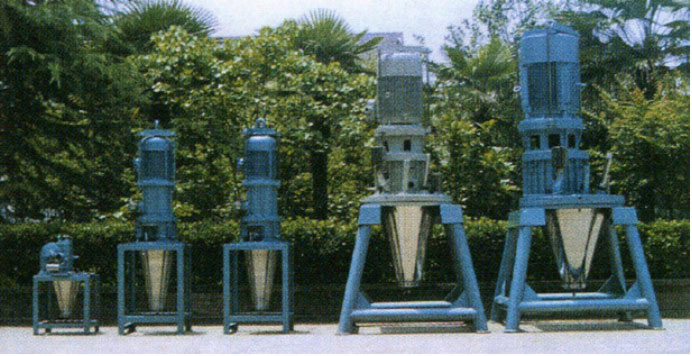

The atomizer of this centrifugal spray dryer adopts SKF bearing imported from Sweden. The unloaded vibration value of this kind of bearing is smaller than 5um. And the loaded vibration is less than 15um. The whole dryer can run up to 7000h without failures. It can also be equipped with additional vibration system which can be used to clean the powder on the inner wall of the dryer via vibration. The powder can also be cleaned by air sweeper.

The following are some kinds of commonly used centrifugal spray dryer for you to choose from, you can also make some related improvements on the base of various types:

Type Item		LPG -5	LPG -25	LPG -50	LPG -100	LPG -150	LPG -200	LPG -500	LPG -800	LPG -1000	LPG -2000	LPG -3000	LPG -4500	LPG -6500
Water evaporation(kg/h)		5	25	50	100	150	200	500	800	1000	2000	3000	4500	6500
Spray type		High speed rotary atomizer
Atomizer speed(r/min)		25000		18000		16000			12000-13000			11000-12000
Atomizing diameter (mm)		50		102		108			180-210		Decided according to process requirements
Tower diameter(m)	D	0.9	1.75	2.3	2.7	3	3.2	4.7	5.6	6.2	Decided according to process flow, factory condition and user requirements
Floor area length (m)	M	1.6	4	4.5	5.2	7	7.5	12.5	13.5	14.5
Floor area width (m)	L	0.91	2.7	2.8	3.5	5.5	6	8	12	14
Tower height (m)	H	1.75	4.5	5.5	6.7	7.2	8	10	11	15
Nozzle hoisting height (m)	H1	-	2.5	2.5	3.2	3.2	3.2	3.2	3.2	3.2
Note: the water evaporation quantity is related with material features, solid content and hot air inlet and outlet temperature.

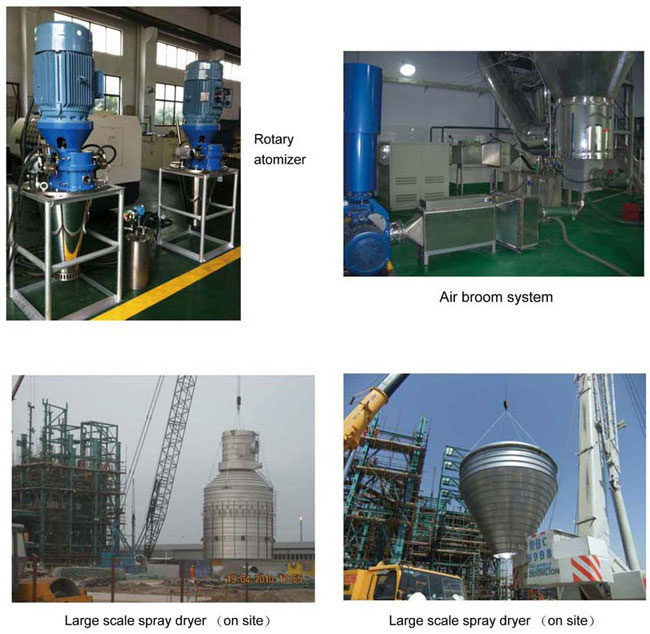

Main components

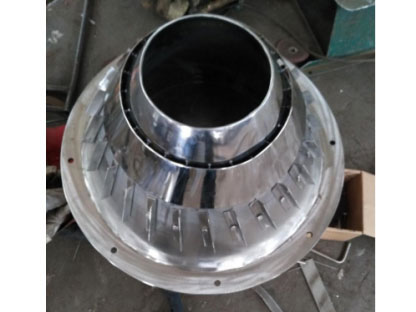

Atomizer:cooling device on top of the tower which can be used to reduce the inner wall temperature of the tower.

If you have interest on our centrifugal spray dryer, please contact us. If there is no drying machine which can satisfy your requirements, please tell us your demands, and we will provide related solutions according to your requirements.

Xiandao has more than 30 years' experience in producing spray drying equipment and fluid bed granulators. Because of various particle processing plant dryers and granulating machinery, we can offer complete spray drying and granulation solutions used in different industries such as pharmaceutical industry, food industry and chemical industry. Our spray drying machines and granulator machines are certified by ISO9000, ISO14001, CE and CU-TR. Due to superior quality and sufficient spare parts inventory, our machines are sold well in the USA, Japan, Australia, Korea, etc.
