Ceramic Spray Drying Machine

The following are some kinds of commonly used ceramic spray drying machine for you to choose from, you can also make some related improvements on the base of various types:

Type	CSD-12	CSD-16	CSD-20	CSD-25	CSD-30	CSD-35
Application	Few quantity granulating in research and development	Few quantity granulating in research and development	Small scale production and granulating	Production granulating	Production granulating	Production granulating
Water evaporation (kg)	5Kg/h	10Kg/h	15Kg/h	30Kg/h	75Kg/h	110Kg/h
Drying room dimension (mm)	φ1200	φ1600	φ2000	φ2500	φ3000	φ3500
Ancillary facilities of drying room	Manhole, inspection window, illuminating window, product recycling tank, air hammer (3 at the conic section)
Atomizing disc (ZrO2/SUS304)	MC-65			MC-84	MC-84/MC-100	MC-125
Speed r.p.m	5000～15000

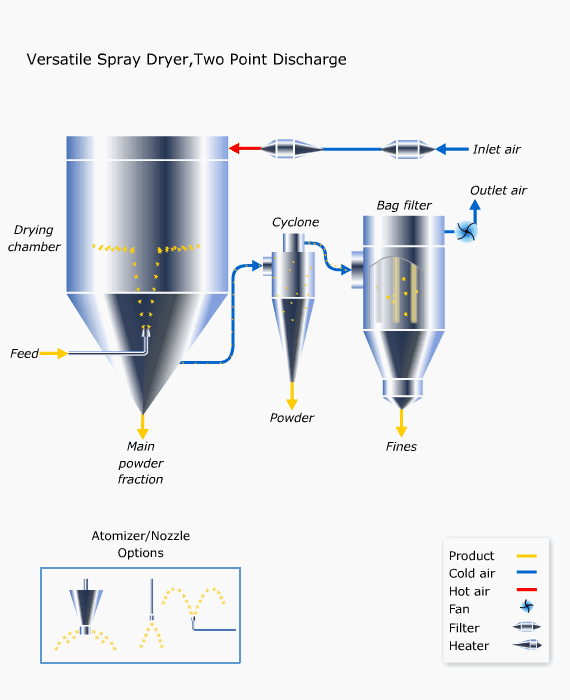

Product recovery	Low-Cap- Type, 2-point collection
Material feeding method	Peristaltic pump
Material pump volume	10Kg/h	20Kg/h	30Kg/h	60Kg/h	150Kg/h	220Kg/h
Heating source	Electrical heater				LPG combustion furnace
Heater volume	18Kw	24Kw	36Kw	60Kw	100000kcal/h	150000kcal/h
Max hot air temperature	300℃
Ancillary devices	Forced draught blower, exhaust fan, primary filter, hot air filter, cyclone separator, bag filter, operational ladder
Instrument control	Hot air temperature display and adjustment alarm apparatus, exhaust air temperature display and adjustment alarm apparatus, atomizer frequency display, drying room pressure meter, hot air filter, differential pressure gauge, cyclone separator differential pressure gauge, bag filter differential pressure gauge
Safety device	Over-temperature protection system for heater				Flameout check device
Power	Power: 380V-3φ Instrument: 220V-1φ
Electric power (installed capacity)	21Kw	27Kw	40Kw	70Kw	8.5Kw	10Kw
Outline dimension (m)	W2.4×L1.7 ×H1.9	W2.7×L1.8 ×H2.4	W3.2×L2.2 ×H2.5	W3.7×L3.4 ×H4.9	W5.3×L4.0 ×H5.9	W6.2×L4.5 ×H8.0
Installation weight	950Kg	1400Kg	1600Kg	2000Kg	3400Kg	4900Kg
Optional device	Temperature recorder, digital atomizer speed display, atomizer vibration tester, double-layer flap valve or flap valve, vibration screen

If you are enterprise processing ceramic products or raw material supplier for the ceramic processing company, this ceramic spray drying machine can satisfy your requirements. Besides this drying machine, Jiangsu Xiandao can also provide related supporting equipment sets which can compose drying production line according to your requirements. Thus it can provide complete solutions for ceramics processing.

Xiandao has more than 30 years' experience in producing spray drying equipment and fluid bed granulators. Because of various particle processing plant dryers and granulating machinery, we can offer complete spray drying and granulation solutions used in different industries such as pharmaceutical industry, food industry and chemical industry. Our spray drying machines and granulator machines are certified by ISO9000, ISO14001, CE and CU-TR. Due to superior quality and sufficient spare parts inventory, our machines are sold well in the USA, Japan, Australia, Korea, etc.
