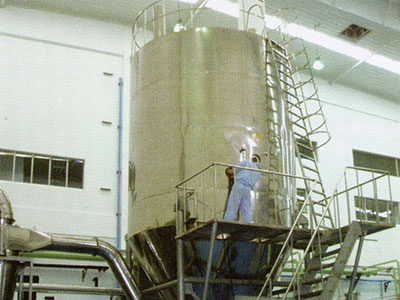

Spray Dryer with PSD Drying System

Main application
Food drying
Sugar drying
Medical products drying
Chemical product drying etc.

The following are some existed spray dryers with PSD drying system, you can choose according to your requirements. Jiangsu Xiandao can also make some improvements on the base of the following type:

Type		PSD－12	PSD－20	PSD－25	PSD－30	PSD－35	PSD－40	PSD－45	PSD－50	PSD－55
Water evaporation quantity（kg/h）		1-5	8-10	10-20	30-40	50-80	80-100	100-150	120-200	150-250
Material treating quantity（kg/h）		3-5	10-20	20-30	30-80	50-120	80-150	120-200	160-280	220-380
Solid content of wet material（%）		15-30
Finished product water content（%）		3-5
Electric power（KW）		21	36	45	63	126	180	216	270	360
Heating source		Steam （0.6～0.8MPa）＋electricity
Product collection method		Cyclone separator＋wet dust collector
Project control system		Project control system or human-computer interface PLC control; adopting Fuzzy technology to track exhaust temperature to realize variable air temperature to match material feeding quantity.
Inlet air temperature（℃ ）		120～220
Outlet air temperature（℃ ）		80～100
Diameter of the drying room（mm）		1200	2000	2500	3000	3500	4000	4500	5000	5500
Outline dimension	L	2500	3600	5000	6000	7500	8000	9000	10000	12000
Outline dimension	W	1800	3000	4000	5000	6000	7000	8000	9000	10000
Outline dimension	H	3000	5000	5800	7000	7500	8500	9000	10000	11500

Features

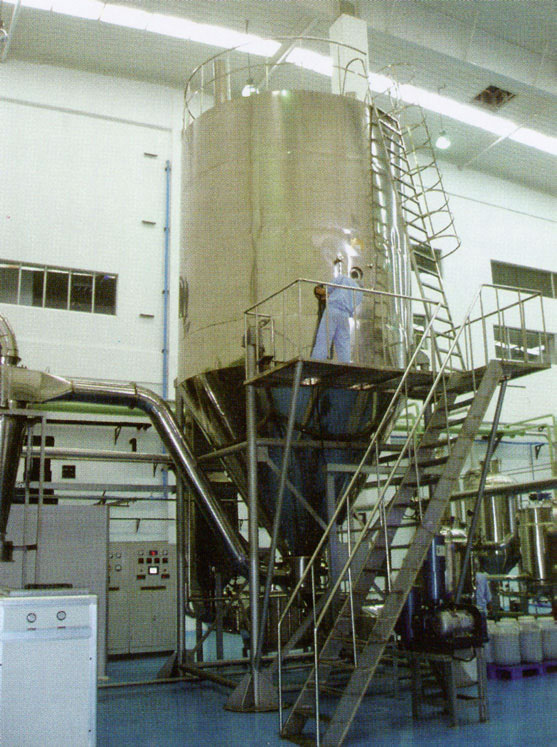

The spray dryer with PSD drying system adopts fully enclosed appearance. All parts are made of stainless steel. This dryer is equipped with 3-stage purification plant. The filtering finished air can meet 100K cleanliness standard.
The dryer tower is equipped with wall cooling device so that the wall temperature can be ＜80℃. So there will be no material coking when the material is resting on the wall. The powder collection rate can be up to 95% without phenomenon of material mixing and sticking on the wall.

Main components

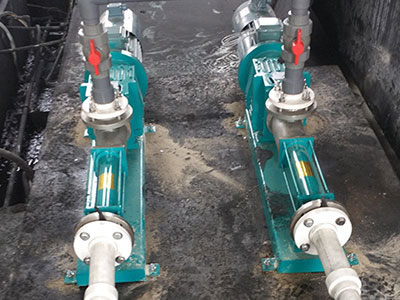

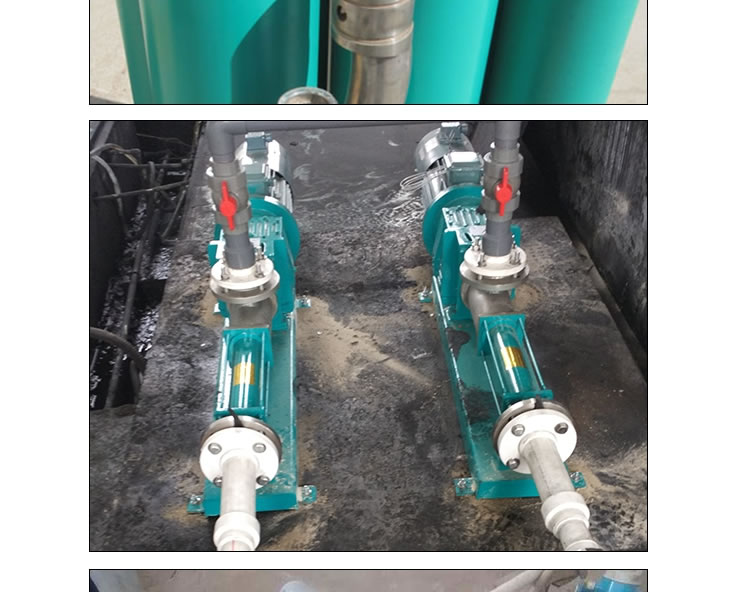

NETZSCH screw pump imported from Germany

Besides drying equipment for pharmaceutical industry, JiangSu Xiandao can provide more kinds of drying equipment or granulating machinery. Besides the dryers, we can also provide related supporting services such as design, installation, maintenance, equipment update etc. If you want to learn more information, please contact us, we will try our best to solve the problem you encountered in production.

Xiandao has more than 30 years' experience in producing spray drying equipment and fluid bed granulators. Because of various particle processing plant dryers and granulating machinery, we can offer complete spray drying and granulation solutions used in different industries such as pharmaceutical industry, food industry and chemical industry. Our spray drying machines and granulator machines are certified by ISO9000, ISO14001, CE and CU-TR. Due to superior quality and sufficient spare parts inventory, our machines are sold well in the USA, Japan, Australia, Korea, etc.
