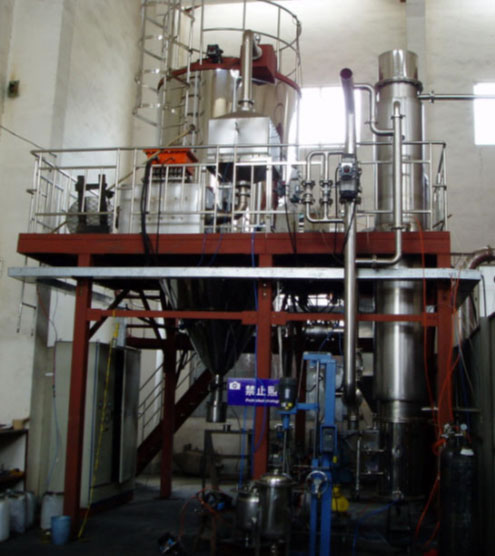

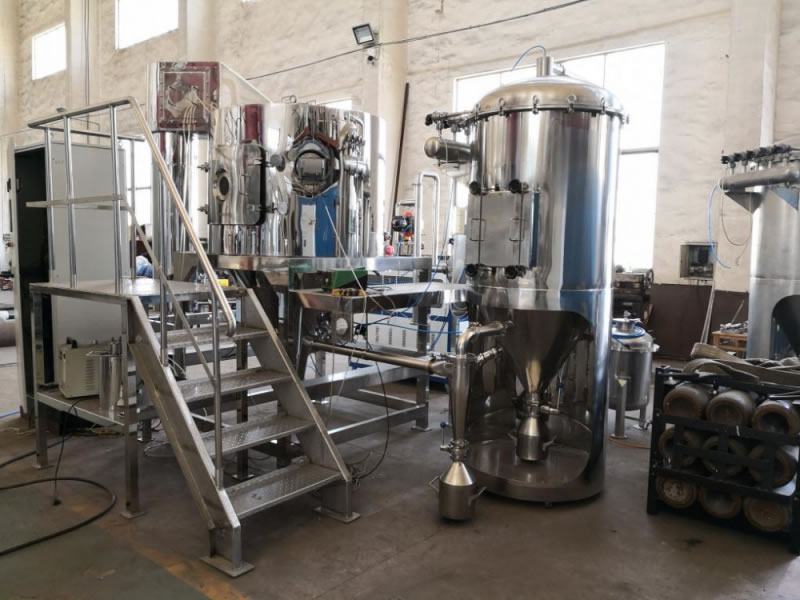

Spray Dryer with  Closed Circulation Drying System

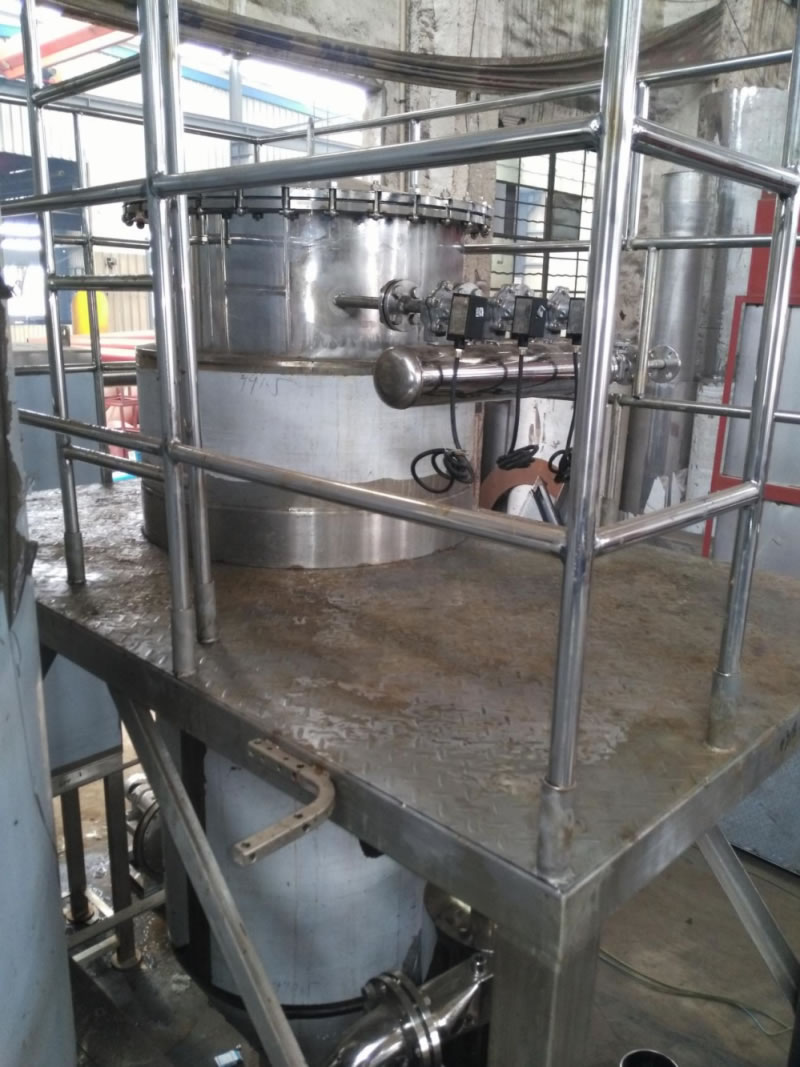

  • Spray Dryer with  Closed Circulation Drying System

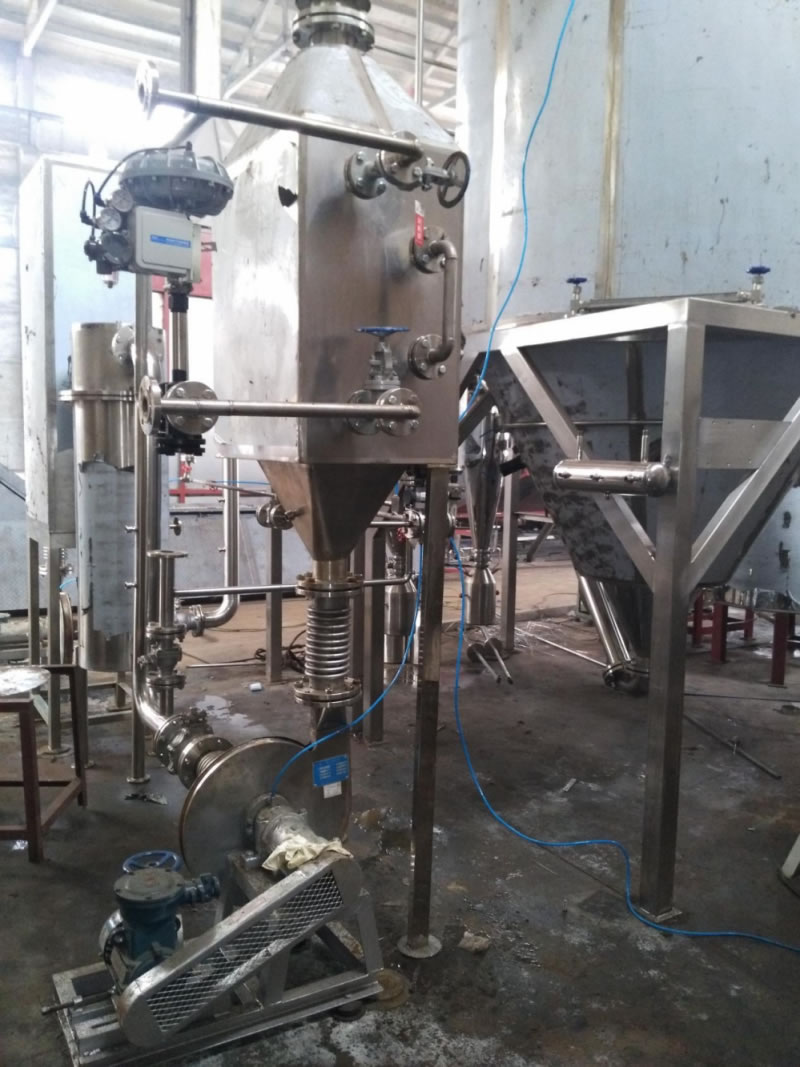

  • Spray Dryer with  Closed Circulation Drying System

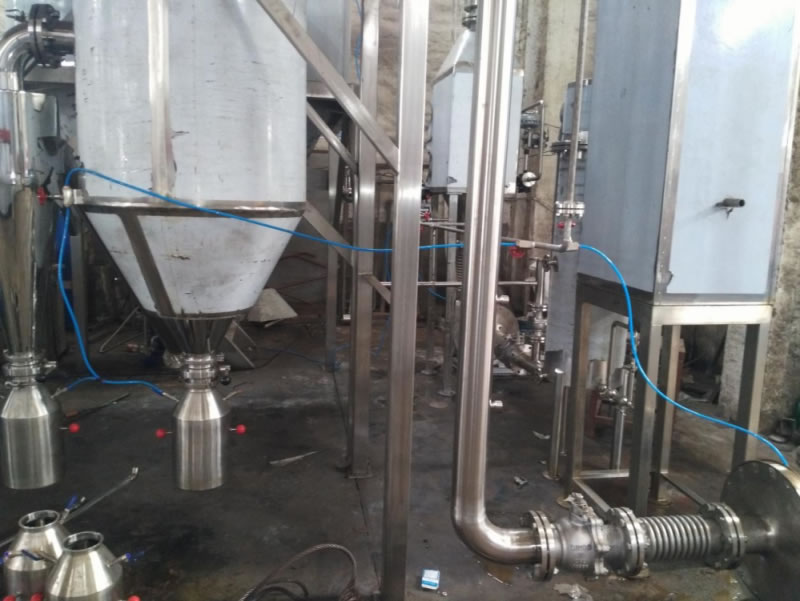

  • Spray Dryer with  Closed Circulation Drying System

Description

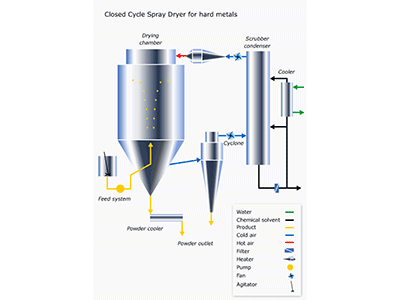

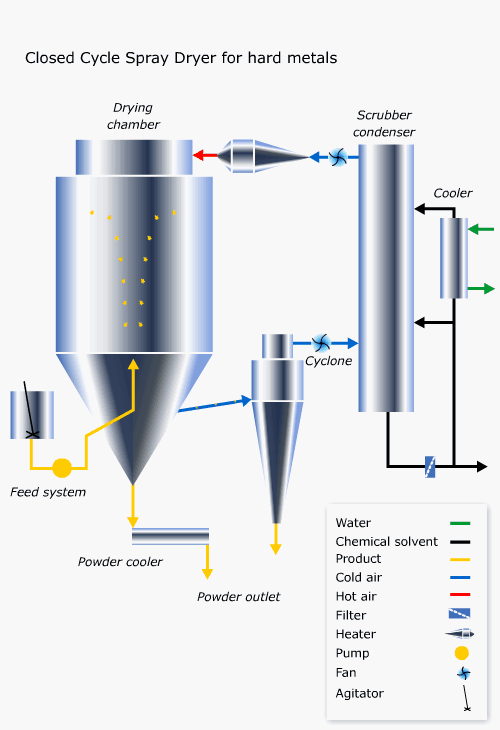

The spray dryer with closed circulation drying system works under enclosed environment. The drying requires inert gas which is generally nitrogen.

The closed circulation drying system is mainly used for drying of material containing alcohol or flammable and combustible solvent or material which can be easily oxidized so that it should not contact the air. By filling with nitrogen and some other inert gases, this dryer can protect the material from air.

The product produced by this dryer can be used to produce spherical material so that this dryer is suitable for production of high precision ceramic, tungsten carbide, silicon nitride, nano-ceramics, cemented carbide and some other powders, medicinal intermediate etc.

The following are some kinds of existing spray dryer with closed circulation drying system. You can directly choose from them or make some improvement on the base of specific types:
Item BYP-8 BYP-12 BYP-16 BYP-20 BYP-25 BYP-30 BYP-35
Ethyl alcohol evaporation quantity 4kg/h 8kg/h 11kg/h 19kg/h 28kg/h 41kg/h 55kg/h
Drying room dimension Φ800 Φ1200 Φ1600 Φ2000 Φ2500 Φ3000 Φ3500
Ancillary facilities Manhole, inspection window, illuminating window
Atomizer WH-50 WH-65 WH-65 WH-65 WH-84 WH-120 WH-120
Speed （r.p.m） 10000～36000 7000～30000 7000～30000 7000～30000 7000～25000 7000～21600 7000～21600
Product recovery Single or two point recovery
Material pump volume 6L/H 15L/H 20L/H 30L/H 40L/H 80L/H 120L/H
Heating source Electrical heating Hot kerosene (or electric heater)
Electrical heating power 6.5KW 15KW 26KW 30KW 45KW 60KW 84KW
Max hot air temperature 200℃ 200℃ 200℃ 200℃ 200℃ 200℃ 200℃
Ancillary devices Circulating fan, cyclone separator, bag filter, solvent recovery unit
Instrument control Hot air temperature CNC instrument, temperature recording, cyclone separator, bag filter differential pressure gauge, tower pressure gage etc.
Safety device Oxygen concentration detector, pressure switch, automatic system pressure adjusting system
Installed power ～12KW ～26KW ～33KW ～45KW ～60KW ～90KW ～120KW


Note: The evaporation quantity of the ethyl alcohol use the quantity when the hot air inlet temperature is 140℃ and the outlet temperature is 70℃ as a baseline.

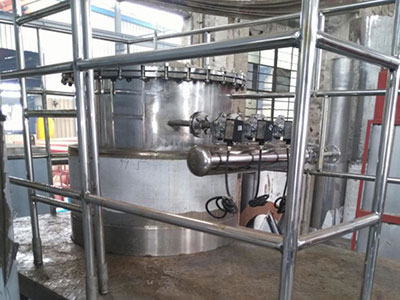

  • Spray Dryer with  Closed Circulation Drying System

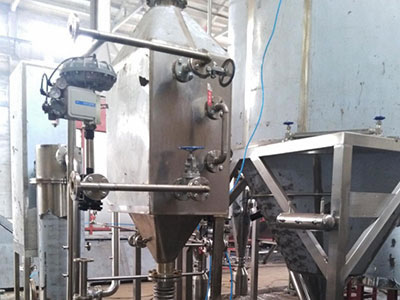

  • Spray Dryer with  Closed Circulation Drying System
  • Spray Dryer with  Closed Circulation Drying System

If you are interested in a specific type of spray dryer with closed circulation drying system listed above, you can tell us the No. of the equipment and if you need related adjustment on the configuration. If you need more pre-drying and post-drying equipment, Jiangsu Xiandao can satisfy your requirements. If there is no existing dryer which can meet your demands, please tell us your requirements. And we can provide more solutions according to your needs.

Data download Configuration description for BYP series closed-cycle spray dryer
Xiandao has more than 30 years' experience in producing spray drying equipment and fluid bed granulators. Because of various particle processing plant dryers and granulating machinery, we can offer complete spray drying and granulation solutions used in different industries such as pharmaceutical industry, food industry and chemical industry. Our spray drying machines and granulator machines are certified by ISO9000, ISO14001, CE and CU-TR. Due to superior quality and sufficient spare parts inventory, our machines are sold well in the USA, Japan, Australia, Korea, etc.
