Pressure Atomizer Spray Drying Machine

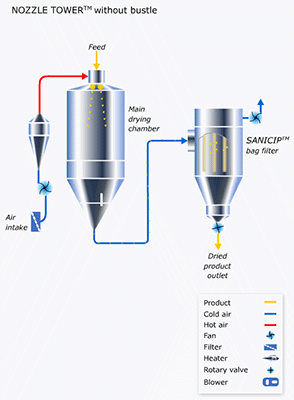

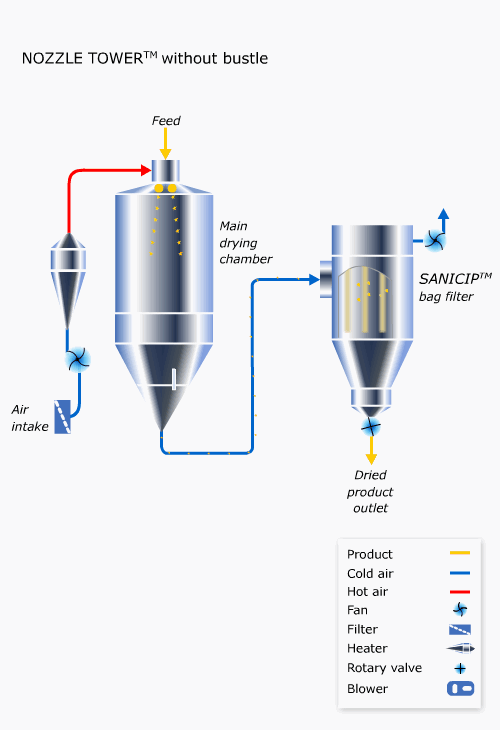

Process flow

Advantages

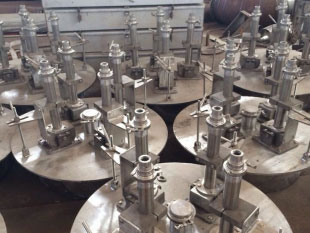

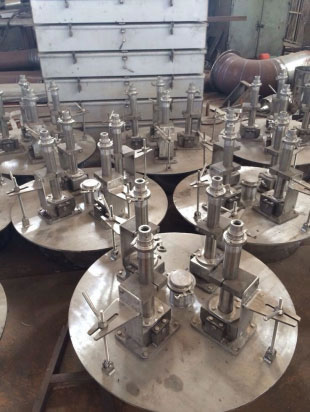

The pressure atomizer spray drying machine will pump the feeding material into the drying room by diaphragm pump (control pump). Meanwhile, the cold air from the outside will be heated after being filtered by the filtering system. Then, conduct atomization of the feeding material and filtered air via nozzle atomizer. Around 95-98% water content will be instantly evaporated in the drying room. Only ten to dozens of seconds are needed to accomplish drying. The pressure atomizer spray drying machine adopts automatic slurry washing device and spray gun anti-blocking technology so that it is especially suitable for drying of heat sensitive material.

Besides, this spray drying machine can be equipped with additional fine powder collection system according to users’ requirements to prevent material waste.

Application range:
Food industry drying
Pharmaceutical industry drying
Plastic resin drying
Detergent drying
Chemical industrial product drying
Ceramics drying etc.

The following are some kinds of commonly used pressure atomizer spray drying machine for you to choose from, you can also make some related improvements on the base of various types:

Type/item

YPG
-6

YPG
-12.5

YPG
-25

YPG
-50

YPG
-65

YPG
-100

YPG
-200

YPG
-300

YPG
-500

YPG
-600

YPG
-1000

YPG
-2000

YPG
-3000

Water evaporation quantity (kg/h)

12.5

100

200

300

500

600

1000

2000

3000

Spraying method

Low pressure nozzle

Spraying pressure (MPa)

Bottom spraying type: 0.6~4.0 ; top spraying type 1.0~1.5

Tower diameter(m)

1.40	1.60	2.0	2.8	3	3.5	4	4.5	4.8	5	5.4	5.8	6.2	6.8
5.2	6.3	7.65	9.4	9.4	9.4	11.25	14.5	15.75	15.85	16	18	18.5	20
3	3.8	5	5.4	5.6	5.6	9	10	12	13	15	17	17.5	17.5
2	2.75	4.2	4.7	4.7	4.9	6.5	7	8	8.5	10	12	12.5	13

Tower height (m)

Floor area length (m)

Floor area width (m)

Note: the water evaporation quantity is related with material features, solid content and hot air inlet and outlet temperature.

Besides of providing various kinds of drying equipment sets, Jiangsu Xiandao also provides related supporting services such as designing and arranging according to the factory conditions, providing installation or guidance services, after-sale technical guidance and maintenance guidance etc. If you have interest on our equipment, please tell us the No. you want, we will try out best to satisfy your requirements.

Xiandao has more than 30 years' experience in producing spray drying equipment and fluid bed granulators. Because of various particle processing plant dryers and granulating machinery, we can offer complete spray drying and granulation solutions used in different industries such as pharmaceutical industry, food industry and chemical industry. Our spray drying machines and granulator machines are certified by ISO9000, ISO14001, CE and CU-TR. Due to superior quality and sufficient spare parts inventory, our machines are sold well in the USA, Japan, Australia, Korea, etc.
